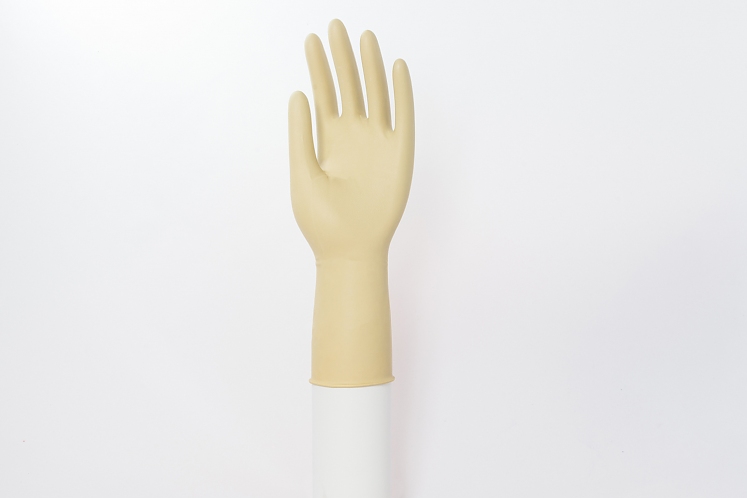

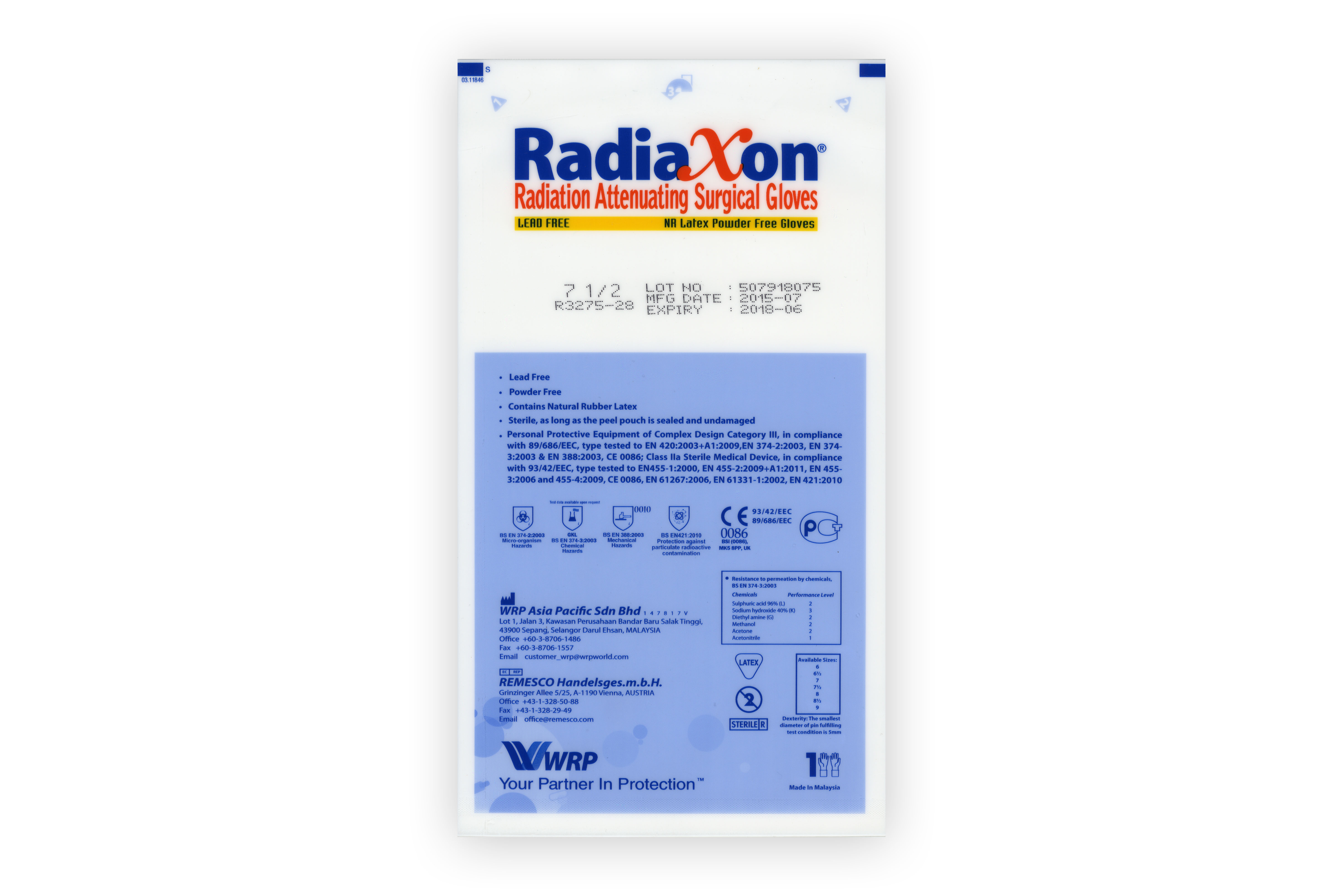

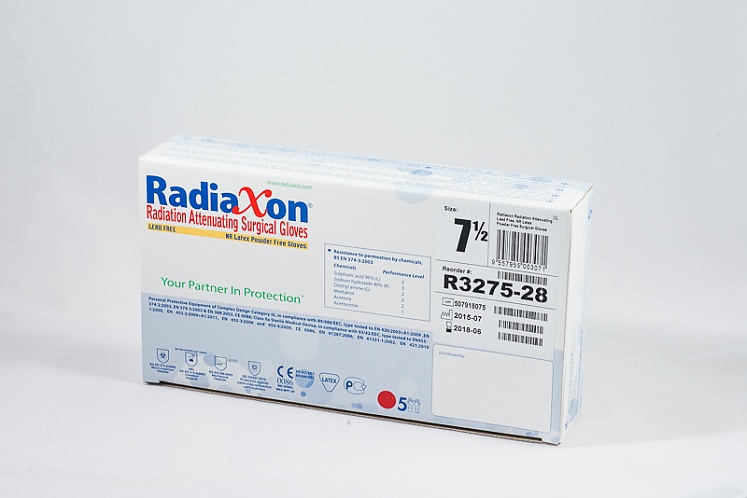

Radiaxon Latex

Lead Free Latex Powder Free Gloves
RadiaXon radiation protection gloves are sterile single-use gloves with a sole
purpose: Attenuation of secondary radiation. This personal protection shield is used during medical procedures e.g. fluoroscopic examinations, in order to protect the user from unnecessary radiation exposure.

Main properties:

  • Lead-free
    In comparison to other radiation protection gloves, RadiaXon radiation
    protection gloves are lead-free. The glove obtains its excellent attenuation through a proprietary bismuth oxide formulation,
    developed specially for radiation protection gloves.
  • Selected Applications
    RadiaXon radiation protection gloves are mainly used in the following areas:
    – Heart catheter examinations
    – Angiocardiography
    – Gynaecology
    – Urology
    – Orthopaedics
    – Fluoroscopic examinations
    – Pain management
    – Electrophysiological examinations
    – Traumatology
  • Disposable and non-toxic
    As RadiaXon radiation protection gloves
    do not contain lead, they can be disposed of as a single-use product without the expensive procedures required for lead protection gloves.
  • Excellent Attenuation properties
    The RadiaXon radiation protection glove has a revolutionary thin film design which offers enhanced dexterity, better sensitivity and comfort. These benefits are afforded while still delivering excellent attenuation characteristics. This allows the wearer to have the best of fit, feel and comfort without compromising on protection.

Beam Energy Level

60 kVp
80 kVp
100 kVp
120 kVp

Skin Dose Reduction

65%
51%
44%
39%

Size 6,0: min. 275mm length
Size 6,5: min. 275mm length
Size 7,0: min. 280mm length
Size 7,5: min. 285mm length
Size 8,0: min. 285mm length
Size 8,5: min. 285mm length
Size 9,0: min. 285mm length

Thickness at Fingertips: 0.30 mm

Tensile strength (unaged/Mpa): min. 15

Values can vary slightly within permissible product specifications depending
on glove size, glove weight and accuracy of the equipment.


CAUTION
This glove is not intended for use in the direct or primary x-ray beam. The purpose of this radiation protection glove is to protect the hands from scattered secondary radiation exposure originating from the x-ray beam during fluoroscopic procedures.

• Personal protection as per Guideline 89/686/EEC (Category III, tested as per
EN420:2003+AI:2009, EN374-2:2003, EN374-3:2003 und EN388: 2003), CE 0086
• Medical product as per the European Guideline 93/42/EEC (CE Class IIa, tested per EN455-1:2000, EN455-2:2009+A1:2011, EN455-3:2006, EN455-4:2009), CE 0086
• ASTM D3577
• EN 61267:2006, EN 61331-1:2002, EN 421:2010

Quality Assurance
Manufacturing process is in compliance with the following regulations:
• BS EN ISO9001
• BS EN ISO13485 Qualitätssysteme
• US FDA Quality System Regulation (QSR)

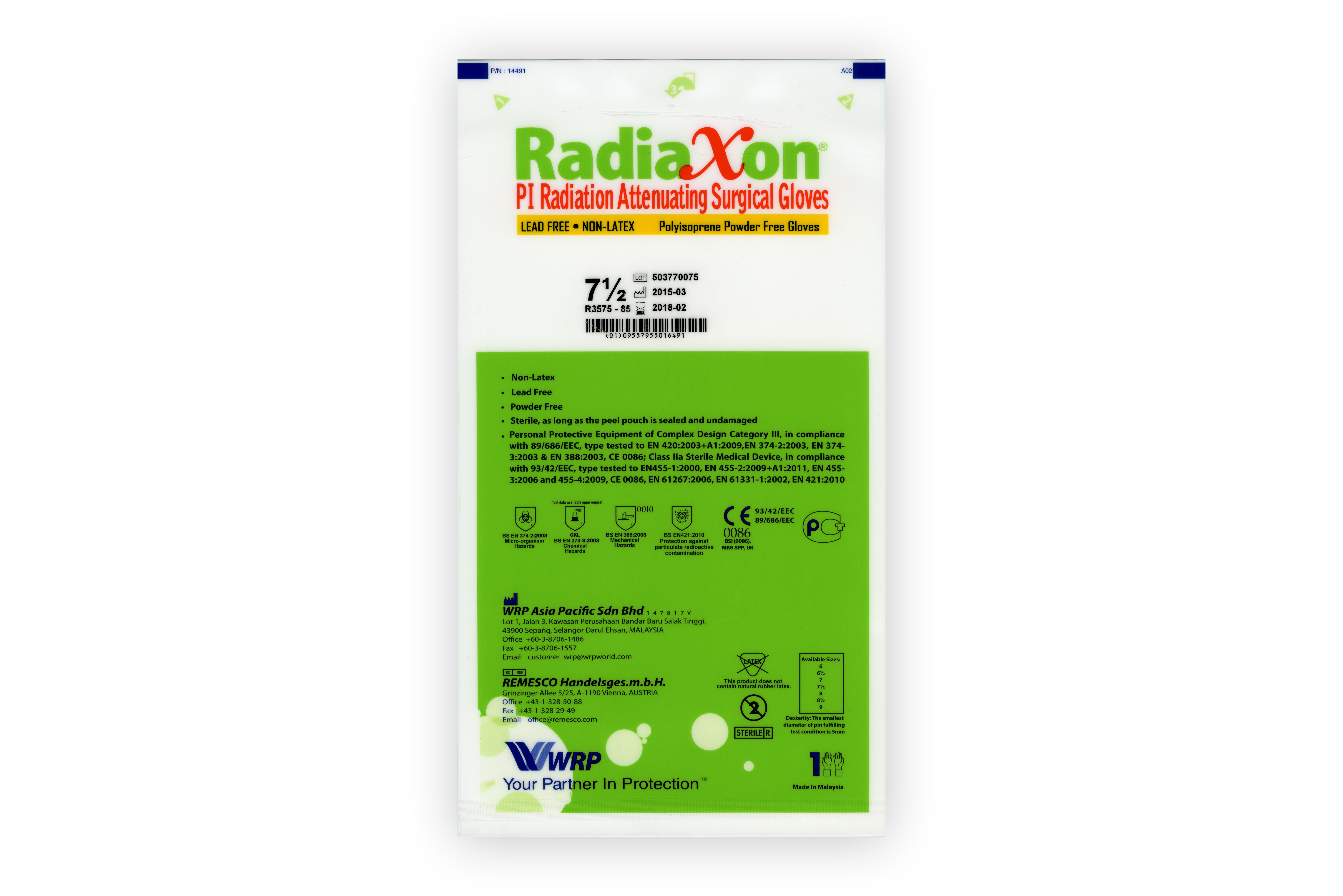

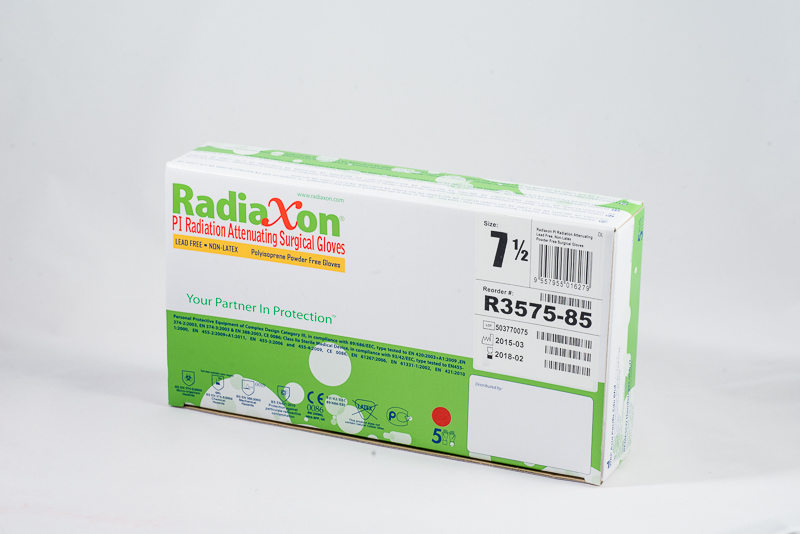

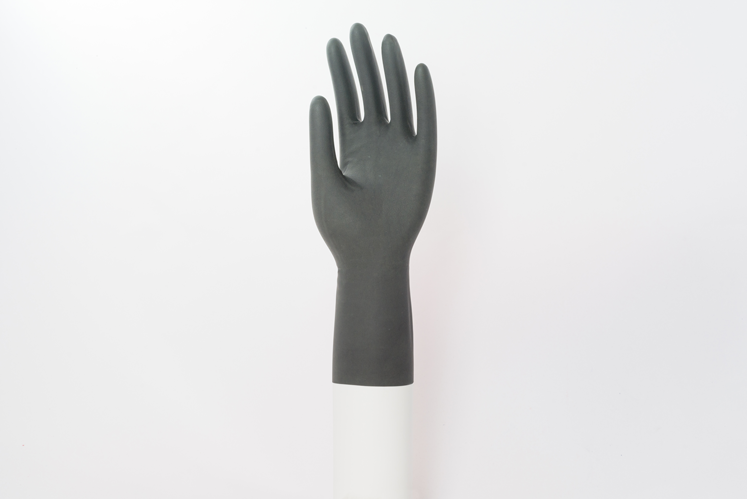

Radiaxon PI

Lead Free NON-Latex Polyisoprene Powder Free Gloves
RadiaXon PI radiation protection gloves are latexfree sterile single-use gloves with the sole purpose of attenuating secondary radiation. This hand specific personal protection device is
used in medical procedures, e.g. fluoroscopic examinations, in order to protect the user from unnecessary harmful radiation.

Main properties

  • Latexfree and leadfree
    RadiaXon PI is not only leadfree, it is also latexfree. The glove gets its excellent protection qualities from a specially developed leadfree formulation.
  • Selected applications
    RadiaXon radiation protection gloves are mainly used in the following areas:
    – Heart catheter examinations
    – Angiocardiography
    – Gynaecology
    – Urology
    – Orthopaedics
    – Fluoroscopic examinations
    – Pain management
    – Electrophysiological examinations
    – Traumatology
  • Disposable and non-toxic
    As RadiaXon radiation protection gloves do not contain lead, they can be disposed of like other  single-use products without the expensive procedures required for lead protection gloves.
  • Excellent Attenuation qualities
    The RadiaXon radiation protection glove has a revolutionary thin film design which offers enhanced dexterity, better sensitivity and comfort. These benefits are afforded while still delivering excellent attenuation characteristics. This allows the wearer to have the best of fit, feel and comfort without compromising on protection.

Beam Energy Level

60 kVp
80 kVp
100 kVp
120 kVp

Skin Dose Reduction

62%
53%
46%
40%

Size 6,0: min. 280mm length
Size 6,5: min. 280mm length
Size 7,0: min. 283mm length
Size 7,5: min. 287mm length
Size 8,0: min. 288mm length
Size 8,5: min. 290mm length
Size 9,0: min. 290mm length

Thickness at Fingertips: min. 0.30 mm

Tensile strength (unaged/Mpa): min. 9

Values can vary slightly within permissible product specifications depending
on glove size, glove weight and accuracy of the equipment.

CAUTION
This glove is not intended for use in the direct or primary x-ray beam. The purpose of this radiation protection glove is to protect the hands from scattered secondary radiation exposure originating from the x-ray beam during fluoroscopic procedures.

In compliance with EN 420, EN 374-2, EN 388,IEC/EN61331-1 Radiation quality acc to IEC 1267 /EN61267, RQR qualities (Al-filtration), ICRUSl (International Commission on Radiological Protection)

Manufacturing process is in compliance with US FDA Quality System Regulation (QSR) and BS EN IS09001 Quality System RadiaXon®is an approved product of OSHA, Germany

Radiaxon PI Sensitive

Lead Free NON-Latex Polyisoprene Powder Free Gloves
Extrathin RadiaXon PI Sensitive protection gloves made of Polyisoprene guarantee an optimal combination of attenuation and tactile sensitivity. The thinner wall thickness provides better grip whilst providing excellent attenuation.

Main properties

  • Latexfree and leadfree
    RadiaXon PI is not only leadfree, it is also latexfree. The glove gets its excellent protection qualities from a specially developed leadfree formulation.
  • Selected applications
    RadiaXon radiation protection gloves are mainly used in the following areas:
    – Heart catheter examinations
    – Angiocardiography
    – Gynaecology
    – Urology
    – Orthopaedics
    – Fluoroscopic examinations
    – Pain management
    – Electrophysiological examinations
  • Disposable and non-toxic
    As RadiaXon radiation protection gloves do not contain lead, they can be disposed of like other  single-use products without the expensive procedures required for lead protection gloves.
  • Excellent Attenuation qualities with new thinner wallthickness
    The RadiaXon radiation protection glove has a revolutionary thin film design which offers enhanced dexterity, better sensitivity and comfort. These benefits are afforded while still delivering excellent attenuation characteristics. This allows the wearer to have the best of fit, feel and comfort without compromising on protection.

Beam Energy Level

60 kVp
80 kVp
100 kVp
120 kVp

Skin Dose Reduction

51%
48%
37%
32%

Size 6,0: min. 280mm length
Size 6,5: min. 280mm length
Size 7,0: min. 283mm length
Size 7,5: min. 287mm length
Size 8,0: min. 288mm length
Size 8,5: min. 290mm length
Size 9,0: min. 290mm length

Thickness at Fingertips: min. 0.25mm

Tensile strength (unaged/Mpa): min. 9

Values can vary slightly within permissible product specifications depending
on glove size, glove weight and accuracy of the equipment.

CAUTION
This glove is not intended for use in the direct or primary x-ray beam. The purpose of this radiation protection glove is to protect the hands from scattered secondary radiation exposure originating from the x-ray beam during fluoroscopic procedures.

In compliance with EN 420, EN 374-2, EN 388,IEC/EN61331-1 Radiation quality acc to IEC 1267 /EN61267, RQR qualities (Al-filtration), ICRUSl (International Commission on Radiological Protection)

Manufacturing process is in compliance with US FDA Quality System Regulation (QSR) and BS EN IS09001 Quality System RadiaXon®is an approved product of OSHA, Germany
